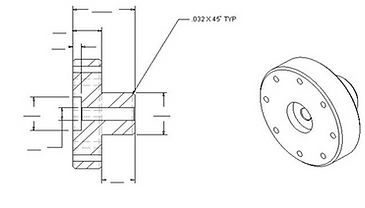

Segment Stake Tools

Ball Stake Tools

 Bearing

housing

Install Specs

sleeve

© 2016 by CABCO Industries INC

Tri-Roller ® is a registered trademark of CABCO Industries INC

Tools: Tri-Roller®, Portable Tri-Roller®,Staking Tools, Cutting Tools, Testing Tools.



This installation requires a portion of the housing be swaged or staked over the chamfers on the bearing. The housing can be roller swaged using a Tri-roller tool in a drill press or vertical milling machine. Some specifications require staking with a Ball, Ring or Segmented tool using a hydraulic press.

Tools: Tri-Roller®, Portable Tri-Roller®, Cutting Tools, Testing Tools.



This installation requires that the outer portion of the "V" groove machined on the side of the bearing be swaged over the chamfers on the housing bore. The Tri-roller swages one side at a time using a drill press or vertical milling machine. The Anvil tool swages both sides simultaneously using a hydraulic press.

OEM

Aerospatiale

Bell Helicopter

Boeing

Cessna

Douglas

Fairchild

General Dynamics

Grumman

Lockheed

McDonnel

NAA

Northrop

NWL

Parker

Sikorsky

Vought

 Specification

02-110

BPS 4162

BAC 5435

CSMP 023

DPS 1.33

SP1613

M 004 / M 236

GS 15A / G46

DS 5026-1

PS 17005 / PS 17030

LA0101-006

FH-19/B-1

MP-80

ES2-124

SS 8745

CVA 13-180

OEM

Aerospatiale

Airesearch

Barry Controls

Bell Helicopter

Boeing

Cessna

Douglas

Fairchild

General Dynamics

Grumman

Martin STP

McDonnel

NAA

Northrop

NWL

Parker

Sikorsky

Vought CVA

Specification

02-110

S8550

DSW 647

BPS 4162

BAC 5435

CSMP 023

DPS 1.33 / DPS 1.33-2

SP 1613

M 017

GB14E

STP 35008

PS 17031

LA0101-006 / STO101LA0004

FH-19 / B-140

MP-80

ES2-124

SS8 743

CVA 13-180

Government Specification

 MIL-STD-1599

 NAVAIR 01-1A-5

 TM-1500-322-24

 T.O. 44B-1-122

 NAS 0331

Government Specification

 MIL-STD-1599

 NAVAIR 01-1A-5

 TM-1500-322-24

 T.O. 44B-1-122

 NAS 0331

Tools: Tri-Roller®, Portable Tri-Roller®,Staking Tools, Cutting Tools, Testing Tools.



This installation requires the use of an intermediate sleeve (aluminum or stainless steel) that is placed between the bearing and housing. The sleeve is either roller swaged flat (Tri-roller) or staked over the bearing and housing (segment or ring) depending on the specification requirements

OEM

Aerospatiale

Boeing

Cessna

Lockheed



Specification

02-110

BAC 5435

CSMP 023

DS 2662 / DS 2773

Government Specification

 MIL-STD-1599

 NAVAIR 01-1A-5

 TM-1500-322-24

 T.O. 44B-1-122
